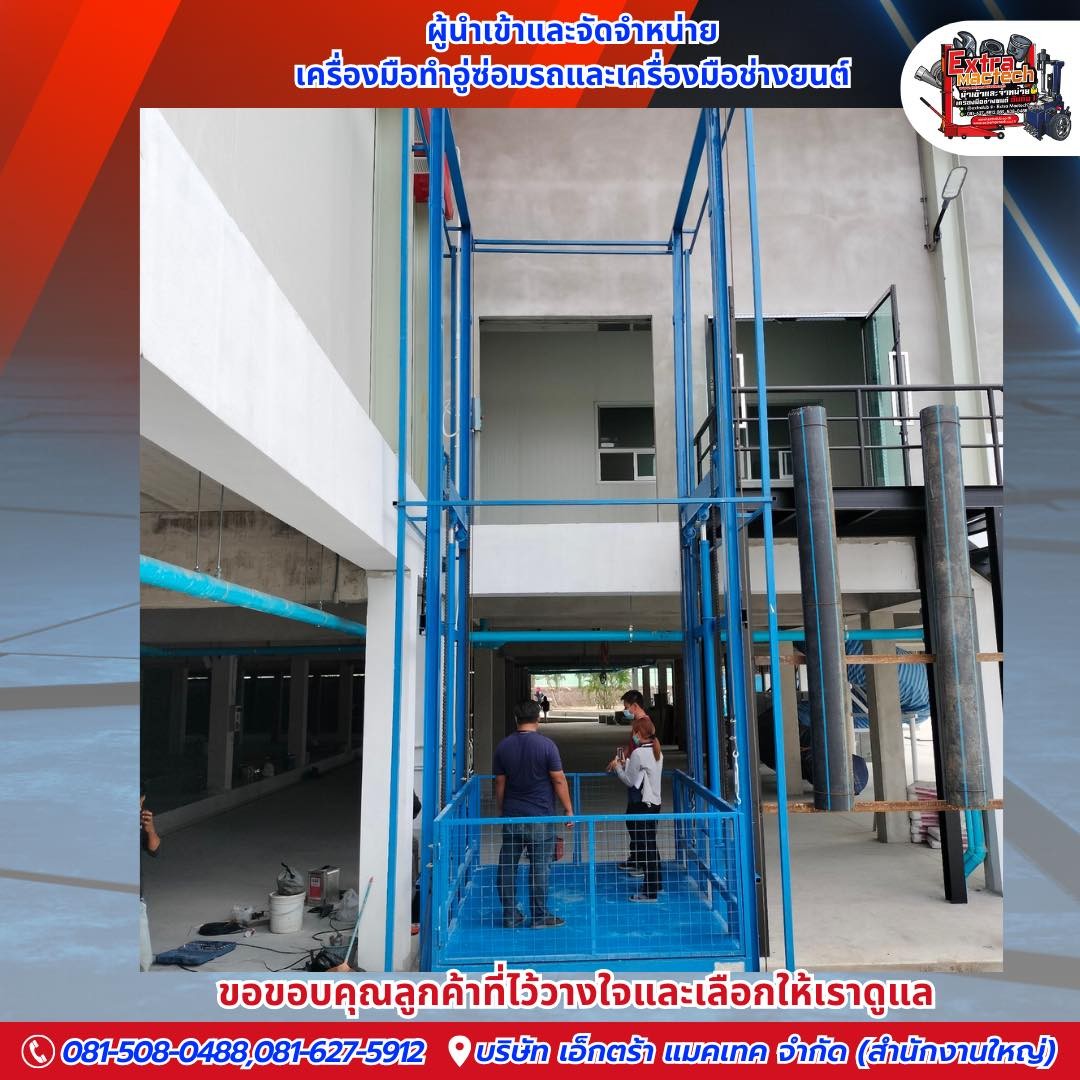

ลิฟท์ขนสินค้าคาร์โก้ลิฟท์

Max. platform height : 3300 mm.

• Rated capacity : 300 kg.
• Max Machine height : 4900 mm.
• Ground clearance : 40 mm.
• Platform Size : 700 mm.
• Max drive speed (platform fall) : 4 km/h
• Max drive speed (platform lift) : 1.6 km/h
• Min turn radius : 1600 mm.
• Max climbimg cap : 15~20°
• Drive motor : 2x24/0.4 v/kw
• Lifting motor : 2x12/1.6 v/kw
• Battery : 2x12/100 v/kw
• Charger : 24/15 v/a
• Overall length : 1530 mm.
• Overall width : 760 mm.
• Overall height : 2130 mm.
• Net weight : 450 kg.

Max. platform height : 4000 mm.

• Rated capacity : 300 kg.
• Max Machine height : 5310 mm.
• Ground clearance : 40 mm.
• Platform Size : 700 mm.
• Max drive speed (platform fall) : 4 km/h
• Max drive speed (platform lift) : 1.6 km/h
• Min turn radius : 1600 mm.
• Max climbimg cap : 15~20°
• Drive motor : 2x24/0.4 v/kw
• Lifting motor : 2x12/1.6 v/kw
• Battery : 2x12/100 v/kw
• Charger : 24/15 v/a
• Overall length : 1620 mm.
• Overall width : 760 mm.
• Overall height : 1840 mm.
• Net weight : 660 kg.

Max. platform height : 4500 mm.

• Rated capacity : 300 kg.
• Max Machine height : 6000 mm.
• Ground clearance : 40 mm.
• Platform Size : 700 mm.
• Max drive speed (platform fall) : 4 km/h
• Max drive speed (platform lift) : 1.6 km/h
• Min turn radius : 1600 mm.
• Max climbimg cap : 15~20°
• Drive motor : 2x24/0.4 v/kw
• Lifting motor : 2x12/1.6 v/kw
• Battery : 2x12/100 v/kw
• Charger : 24/15 v/a
• Overall length : 1620 mm.
• Overall width : 760 mm.
• Overall height : 2000 mm.
• Net weight : 680 kg.
